TIMCO  |  SKU: 50050CLASS  |  Barcode: 5.05502E+12

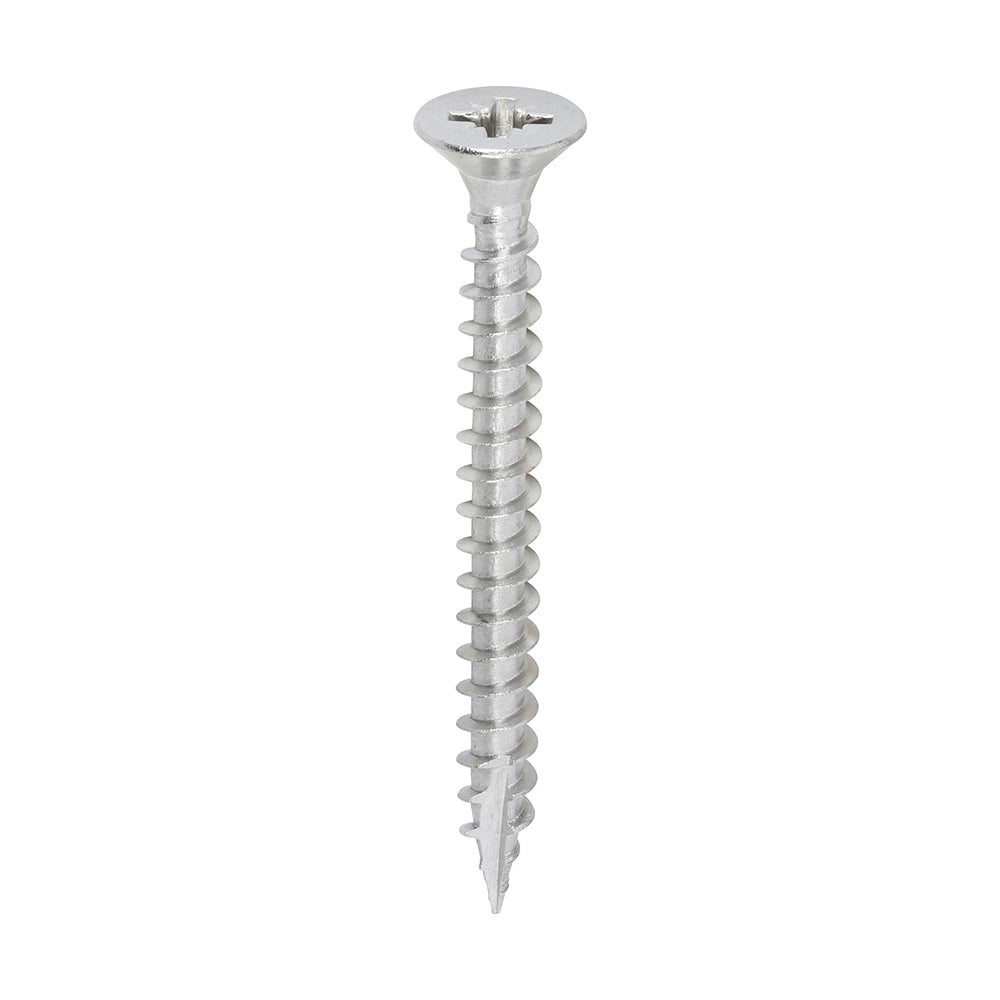

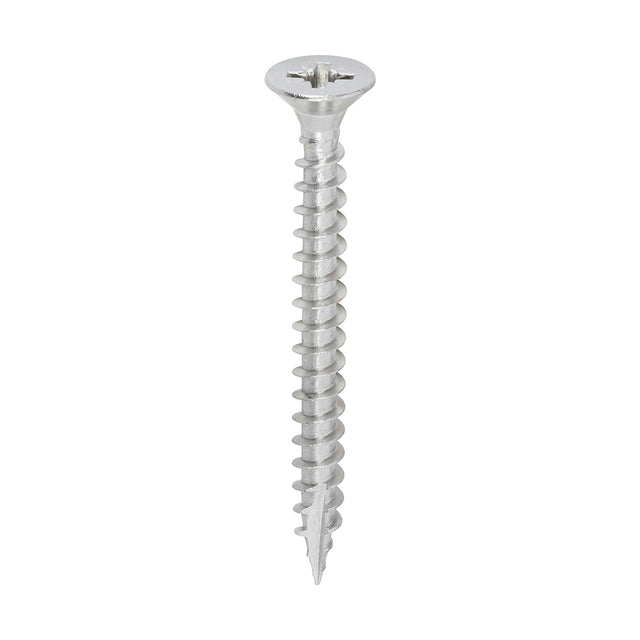

Classic Multi-Purpose Screws - PZ - Double Countersunk - A2 Stainless Steel - 5.0 x 50 - Box of 200

£1374 £2568

SKU: 50050CLASS

Size: 5.0 x 50

Pack Quantity: 200 Pieces

Pack Type: Box

Barcode: 5.05502E+12

✅ CE Marked
Brochure Icon

Brochure Page
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash on 25mm to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .

All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.

Technical Specifications

Specification Details
Thread Dia. (mm) 5
Length (mm) 50
Thread Length (mm) 45
Head Type Double Countersunk
Recess Type Pozi
Point Type 25° Sharp with Single Slash
Driver Bit Size PZ2
Material Austenitic Stainless Steel (A2-304)

Features

  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash on 25mm to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Downloads

Description

All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
