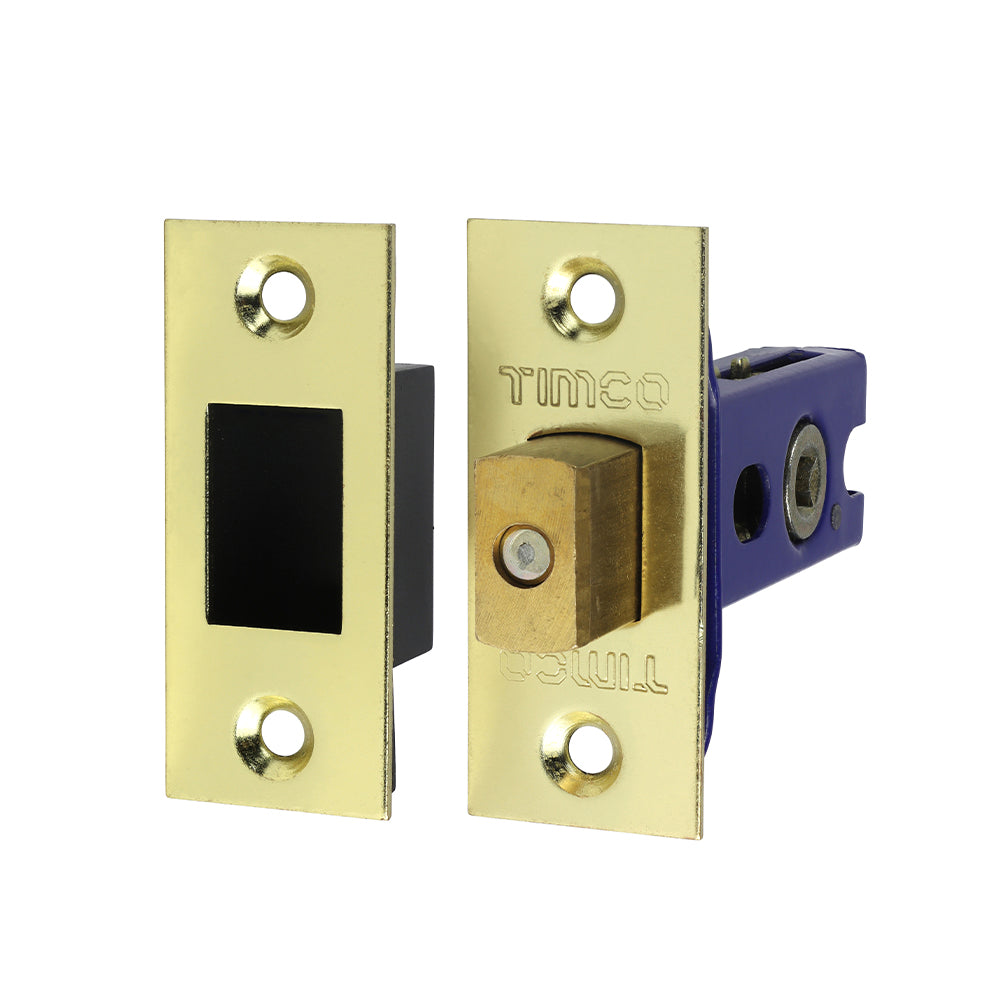

Architectural Tubular Deadbolt - Electro Brass & Satin Nickel - 65.5 case / 45 backset - TIMbag of 1
SKU: 675999P
Size: 65.5 case / 45 backset
Pack Quantity: 1 Each
Pack Type: TIMbag
Barcode: 5.05611E+12
- Fixings for electro brass & satin nickel furniture
- Use with sprung or unsprung furniture
- Dust box
- Complete with fixing screws
Architectural Tubular Deadbolt - Electro Brass & Satin Nickel - 65.5 case / 45 backset - TIMbag of 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
Architectural Tubular Deadbolt - Electro Brass & Satin Nickel -...
Technical Specifications
| Specification | Details |
|---|---|
| Size (mm) | 65.5 / 45 |
| Backset (mm) | 45 |
| Bolt Throw (mm) | 15 |
| Faceplate Size H x W (mm) | 60 x 25 |
| Keep Size H x W (mm) | 60 x 25 |
| Lock Case Size H x D (mm) | 22.5 x 65.5 |
| Finish | Electro Brass Satin Nickel |
Features
- Fixings for electro brass & satin nickel furniture
- Use with sprung or unsprung furniture
- Dust box
- Complete with fixing screws
Downloads
Description
Description
A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
