TIMCO | SKU:
675481P

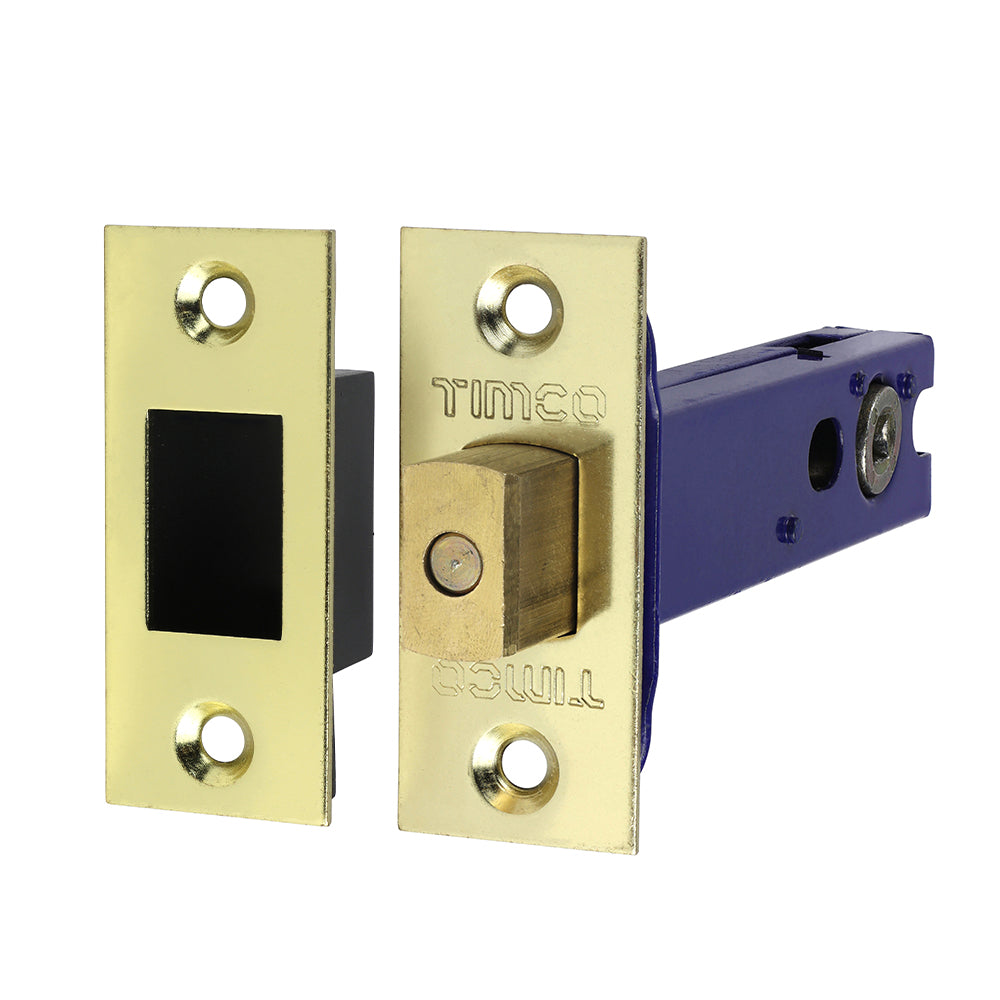

Architectural Tubular Deadbolt - Electro Brass & Satin Nickel - 103.5 case / 82.5 backset - TIMbag of 1
£480
£800
Unit price
/
Unavailable
SKU: 675481P
Size: 103.5 case / 82.5 backset
Pack Quantity: 1 Each
Pack Type: TIMbag
Barcode: 5.05611E+12
- Fixings for electro brass & satin nickel furniture
- Use with sprung or unsprung furniture
- Dust box
- Complete with fixing screws
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .
Architectural Tubular Deadbolt - Electro Brass & Satin Nickel - 103.5 case / 82.5 backset - TIMbag of 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
Technical Specifications
| Specification | Details |
|---|---|
| Size (mm) | 103.5 / 82.5 |
| Backset (mm) | 82.5 |
| Bolt Throw (mm) | 15 |
| Faceplate Size H x W (mm) | 60 x 25 |
| Keep Size H x W (mm) | 60 x 25 |
| Lock Case Size H x D (mm) | 22.5 x 103.5 |
| Finish | Electro Brass Satin Nickel |
Features
- Fixings for electro brass & satin nickel furniture
- Use with sprung or unsprung furniture
- Dust box
- Complete with fixing screws
Downloads
Description
Description
A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
