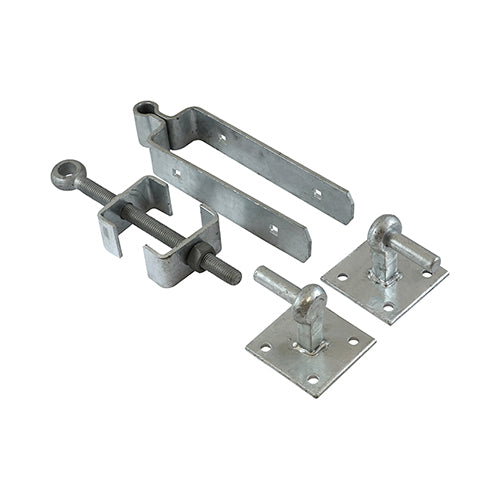

Adjustable Hinge Set With Hook On Plate - Hot Dipped Galvanised - 300mm - Plain Bag of 1
SKU: AFHP300G
Size: 300mm
Pack Quantity: 1 Each
Pack Type: Plain Bag
Barcode: 5.05589E+12
- Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
- Hooks to drive are barbed, preventing the gate from working loose
Adjustable Hinge Set With Hook On Plate - Hot Dipped Galvanised - 300mm - Plain Bag of 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. Depending o
Adjustable Hinge Set With Hook On Plate - Hot Dipped Galvanised - 3...
Technical Specifications
| Specification | Details |
|---|---|
| Top Strap L (mm) | 300 |
| Top Strap L inch | 12 |
| Strap Thickness (mm) | 6 |
| Heel Clip Size L x W x D (mm) | 86 x 50 x 32 |
| Material | Carbon Steel |
| Finish | Hot Dipped Galvanised |
Features
- Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off
- Hooks to drive are barbed, preventing the gate from working loose
Downloads
Description
Description
Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. Depending o
