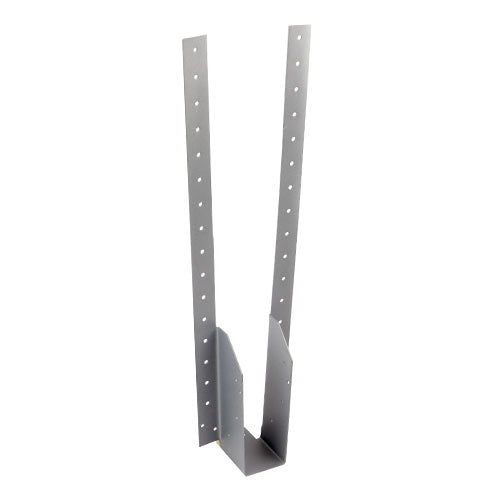

Timber Hangers - Long Leg - Galvanised - 76 x 150 to 250 - Unit of 1
SKU: 76450LTH
Size: 76 x 150 to 250
Pack Quantity: 1 Each
Pack Type: Unit
Barcode: 5.02246E+12
- Conforms to Eurocode 5 and service class 2
Timber Hangers - Long Leg - Galvanised - 76 x 150 to 250 - Unit of 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifically designed for deeper timber to timber applications. Ideal for loft conversions and “under-slung” floor joist applications where the hanger extends below the supporting beam. They have increase leg lengths so that all widths can take up to a 250mm deep joist. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance.
Timber Hangers - Long Leg - Galvanised - 76 x 150 to 250 - Unit of 1
Technical Specifications
| Specification | Details |
|---|---|
| Width (mm) | 76 |
| Bearing (mm) | 50 |
| Thickness (mm) | 1.2 |
| Leg Length (mm) | 435 |
| Joist Size W x H (mm) | 76 x 150 to 250 |
| Material | Carbon Steel |
| Finish | Galvanised |
| Type | Long Leg |
Features
- Conforms to Eurocode 5 and service class 2
Downloads
Description
Description
Specifically designed for deeper timber to timber applications. Ideal for loft conversions and “under-slung” floor joist applications where the hanger extends below the supporting beam. They have increase leg lengths so that all widths can take up to a 250mm deep joist. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance.
