TIMCO | SKU:
12160CS

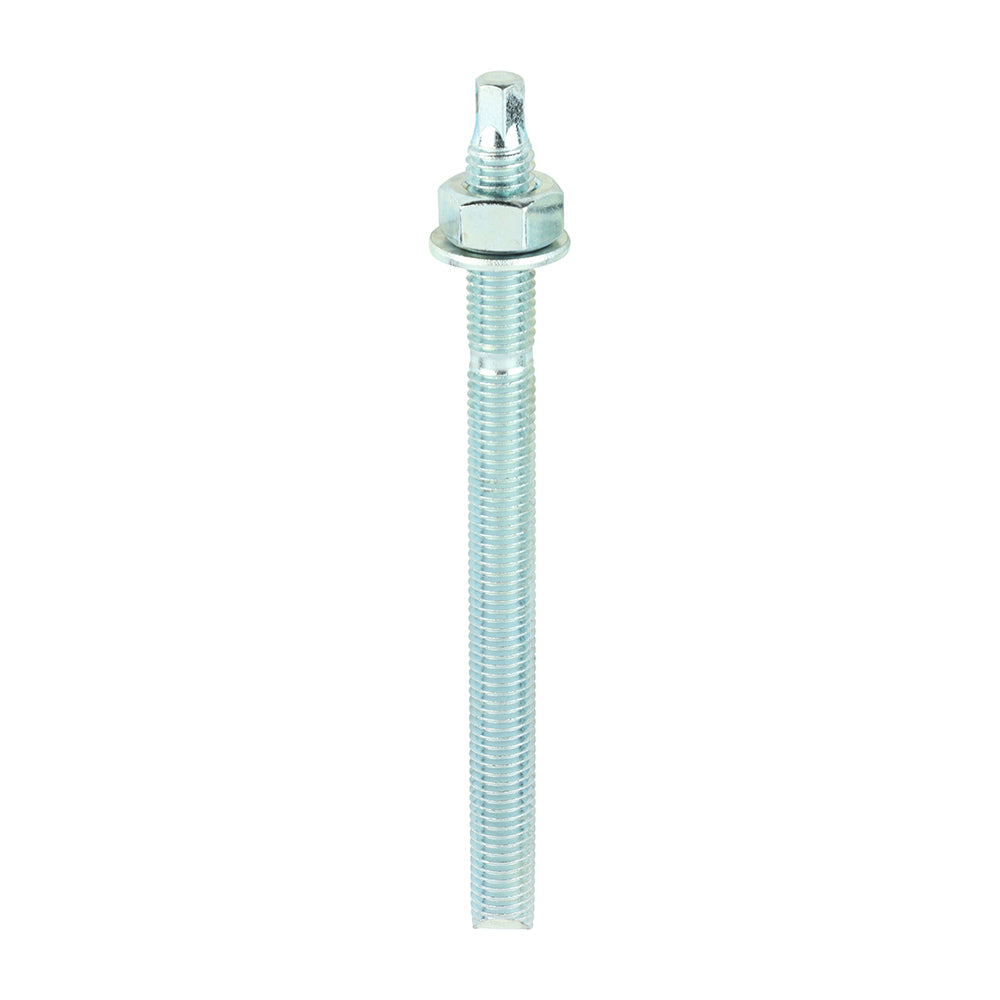

Chemical Anchor Threaded Studs, Nuts & Washers - Zinc - M12 x 160 - Box of 10
£624
£1094
Unit price
/
Unavailable
SKU: 12160CS
Size: M12 x 160
Pack Quantity: 10 Pieces
Pack Type: Box
Barcode: 5.05502E+12
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .
Chemical Anchor Threaded Studs, Nuts & Washers - Zinc - M12 x 160 - Box of 10 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Designed for use when fixing with chemical resins. (Nut setter included)
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | M12 |
| Length (mm) | 160 |
| Material | Carbon Steel |
| Finish | Zinc |
| Nut Type | Hex Full |
| Washer Type | Form A |
| Drill Hole Dia. (mm) | 14 |
| Fixture Hole Diameter (mm) | 14 |
| Hole Depth (mm) | 110 |
| Max Fixture Thickness (mm) | 25 |
Features
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Downloads
Description
Description
Designed for use when fixing with chemical resins. (Nut setter included)
