TIMCO | SKU:
16190CSG

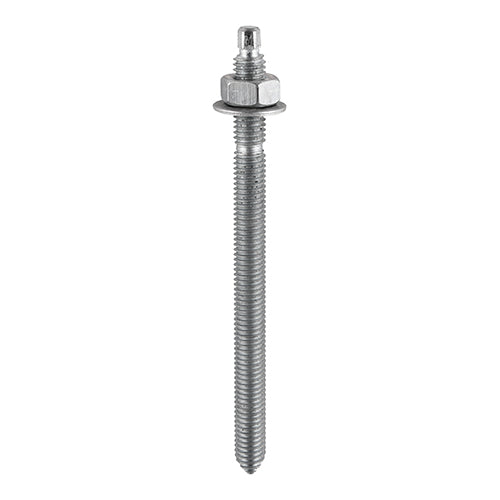

Chemical Anchor Threaded Studs, Nuts & Washers - Hot Dipped Galvanised - M16 x 190 - Box of 10
£1708
£2995
Unit price
/
Unavailable
SKU: 16190CSG
Size: M16 x 190
Pack Quantity: 10 Pieces
Pack Type: Box
Barcode: 5.05502E+12
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Minimum quantity allowed is .
Maximum quantity allowed is 0.
The product can only be sold in quantity increments of 0.
Chemical Anchor Threaded Studs, Nuts & Washers - Hot Dipped Galvanised - M16 x 190 - Box of 10 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Designed for use when fixing with chemical resins. (Nut setter included)
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | M16 |
| Length (mm) | 190 |
| Material | Carbon Steel |
| Finish | Hot Dipped Galvanised |
| Nut Type | Hex Full |
| Washer Type | Form A |
| Drill Hole Dia. (mm) | 18 |
| Fixture Hole Diameter (mm) | 18 |
| Hole Depth (mm) | 125 |
| Max Fixture Thickness (mm) | 35 |
Features
- Chisel point, prevents the rod turning when tightening
- External hex drive
- Embedment depth mark
- Manufactured from grade 5.8 carbon steel
Downloads
Description
Description
Designed for use when fixing with chemical resins. (Nut setter included)
