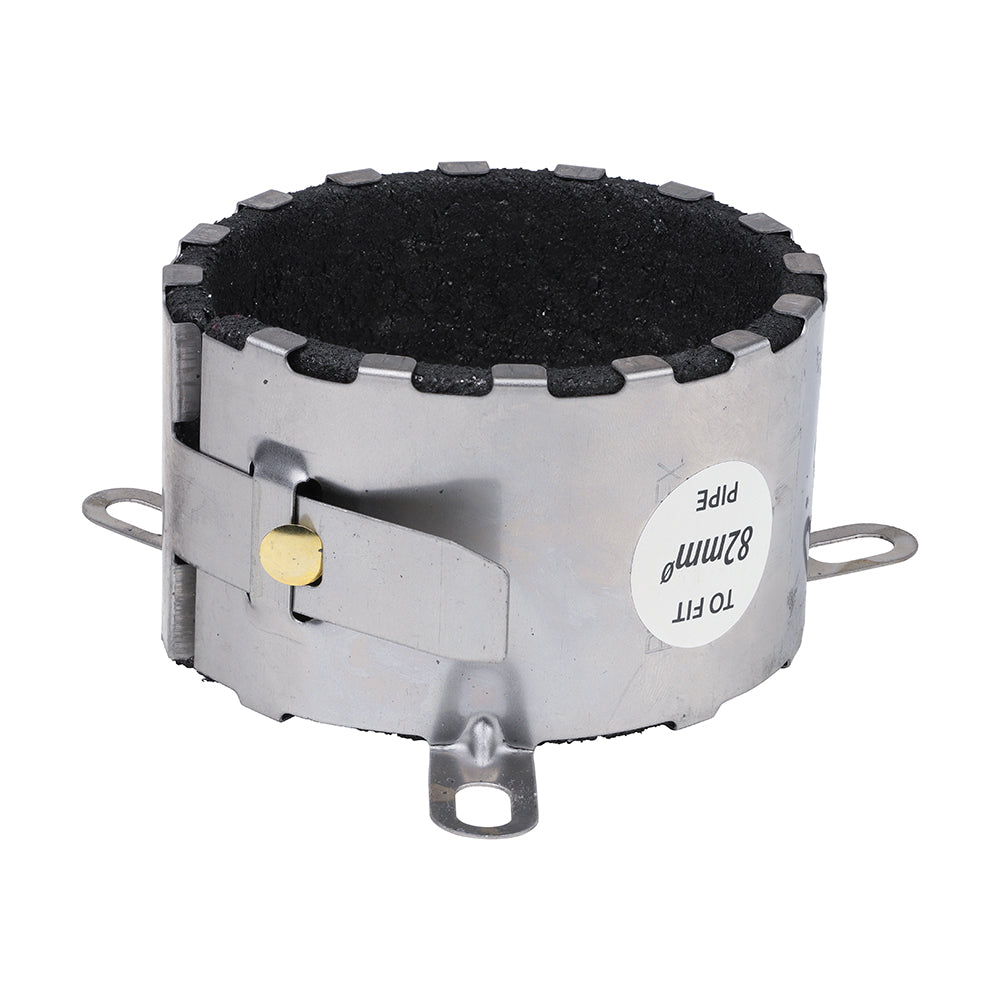

Intumescent Pipe Collar - Pipe Size 82mm - Bag of 1
SKU: 487566
Size: Pipe Size 82mm
Pack Quantity: 1 Each
Pack Type: Bag
Barcode: 5.05611E+12
Brochure Page
- Stainless Steel outer casing
- Tab closing device & welded lugs for quick & easy installation
- Can be face fixed in a wall or ceiling structure
- Intumescent material unaffected by water, non-flaking and difficult to tear
- Suitable for use on concrete, masonry and plasterboard partitions (PPC25 - PPC160 only)
- Soil, waste and drainage 'above ground' applications
- 4 hour fire rating in vertical & horizontal applications
Intumescent Pipe Collar - Pipe Size 82mm - Bag of 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Designed for retro-fit to plastic piping or trunking where it passes through fire resistant structures such as walls or floors. In the event of a fire, the collar's intumescent core rapidly expands to crush the pipe or trunking, which seals off the area and maintains the fire integrity of the structural element.
Technical Specifications
| Specification | Details |
|---|---|
| Size (mm) | 95 x 60 |
| To Suit Pipe Size (mm) | 82 |
| Fire Rating | 240 Minutes |
| Material | Graphite Stainless Steel |
Features
- Stainless Steel outer casing
- Tab closing device & welded lugs for quick & easy installation
- Can be face fixed in a wall or ceiling structure
- Intumescent material unaffected by water, non-flaking and difficult to tear
- Suitable for use on concrete, masonry and plasterboard partitions (PPC25 - PPC160 only)
- Soil, waste and drainage 'above ground' applications
- 4 hour fire rating in vertical & horizontal applications
Downloads
Description
Description
Designed for retro-fit to plastic piping or trunking where it passes through fire resistant structures such as walls or floors. In the event of a fire, the collar's intumescent core rapidly expands to crush the pipe or trunking, which seals off the area and maintains the fire integrity of the structural element.
