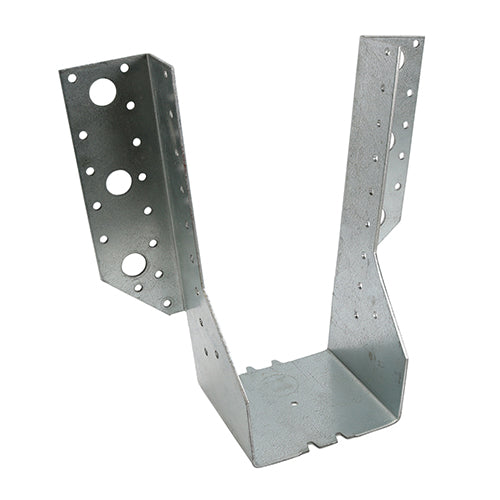

Multi-Functional Hangers - Galvanised - 90 x 207 - Unit of 1
SKU: 90504MFH
Size: 90 x 207
Pack Quantity: 1 Each
Pack Type: Unit
Barcode: 5022456315809
- Conforms to Eurocode 5 and service class 2
Multi-Functional Hangers - Galvanised - 90 x 207 - Unit of 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
TIMCO’s Multi-Functional Hangers are designed for applications where additional strength is required or where access to the top of the timber or steel is not available. Designed for use with different fixings to give greater flexibility and improved performance. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Total length refers to the length of the hanger when laid flat.
Multi-Functional Hangers - Galvanised - 90 x 207 - Unit of 1
Technical Specifications
| Specification | Details |
|---|---|
| Width (mm) | 90 |
| Height (mm) | 207 |
| Bearing (mm) | 85 |
| Thickness (mm) | 2 |
| Total Length (mm) | 504 |
| Material | Carbon Steel |
| Finish | Galvanised |
| Type | Multi-Functional |
Features
- Conforms to Eurocode 5 and service class 2
Downloads
Description
Description
TIMCO’s Multi-Functional Hangers are designed for applications where additional strength is required or where access to the top of the timber or steel is not available. Designed for use with different fixings to give greater flexibility and improved performance. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Total length refers to the length of the hanger when laid flat.
