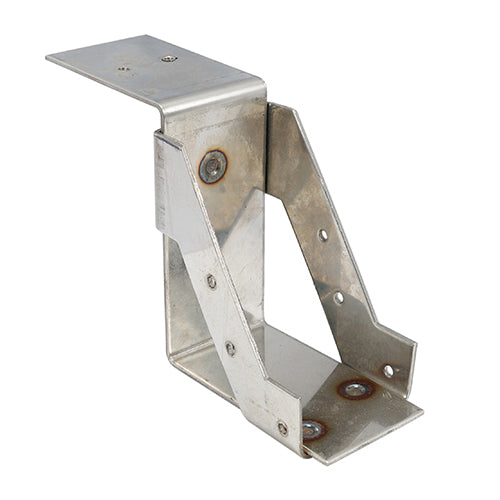

Welded Masonry Joist Hangers - A2 Stainless Steel - 47 x 100 - Unit of 1
SKU: 47100WMHS
Size: 47 x 100
Pack Quantity: 1 Each
Pack Type: Unit
Barcode: 5022456320674
Brochure Page
- Conforms to Eurocode 6 and service class 3
Welded Masonry Joist Hangers - A2 Stainless Steel - 47 x 100 - Unit of 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Welded Masonry Joist Hangers - A2 Stainless Steel - 47 x 100 - Unit...
Technical Specifications
| Specification | Details |
|---|---|
| Width (mm) | 47 |
| Height (mm) | 100 |
| Bearing (mm) | 80 |
| Thickness (mm) | 2.4 |
| Joist Size W x H (mm) | 47 x 100 |
| Material | Austenitic Stainless Steel (A2-304) |
| Type | Welded |
Features
- Conforms to Eurocode 6 and service class 3
Downloads
Description
Description
The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
