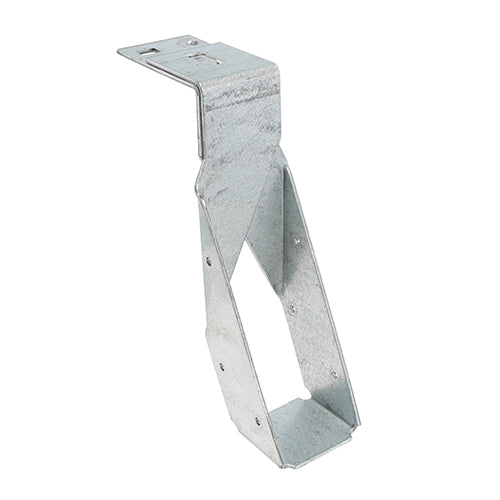

Single Piece Masonry Hangers - Galvanised - 47 x 200 - Unit of 1
SKU: 47200MH
Size: 47 x 200
Pack Quantity: 1 Each
Pack Type: Unit
Barcode: 5022456317391
Brochure Page
- Conforms to Eurocode 6 and service class 2
- Straight top flange
- No welds
- Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber
Single Piece Masonry Hangers - Galvanised - 47 x 200 - Unit of 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
Single Piece Masonry Hangers - Galvanised - 47 x 200 - Unit of 1
Technical Specifications
| Specification | Details |
|---|---|
| Width (mm) | 47 |
| Height (mm) | 190 |
| Bearing (mm) | 75 |
| Thickness (mm) | 2.4 |
| Joist Size W x H (mm) | 47 x 200 |
| Material | Carbon Steel |
| Finish | Galvanised |
| Type | Single Piece |
Features
- Conforms to Eurocode 6 and service class 2
- Straight top flange
- No welds
- Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber
Downloads
Description
Description
The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
