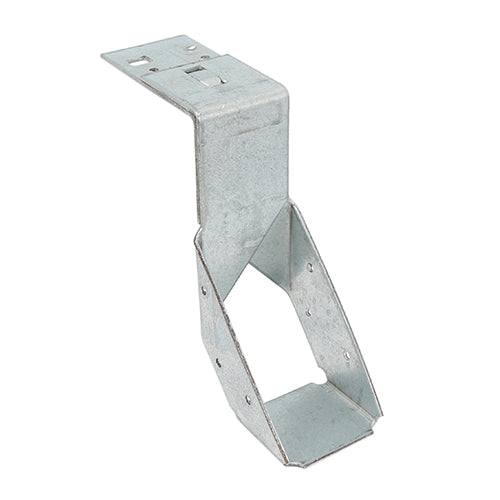

Single Piece Masonry Hangers - Galvanised - 47 x 150 - Unit of 1
SKU: 47147MH
Size: 47 x 150
Pack Quantity: 1 Each
Pack Type: Unit
Barcode: 5022456317377
Brochure Page
- Conforms to Eurocode 6 and service class 2
- Straight top flange
- No welds
- Hangers 150mm and above are manufactured 10mm less to allow for notching and regularised timber
Single Piece Masonry Hangers - Galvanised - 47 x 150 - Unit of 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
Single Piece Masonry Hangers - Galvanised - 47 x 150 - Unit of 1
Technical Specifications
| Specification | Details |
|---|---|
| Width (mm) | 47 |
| Height (mm) | 140 |
| Bearing (mm) | 80 |
| Thickness (mm) | 2.4 |
| Joist Size W x H (mm) | 47 x 150 |
| Material | Carbon Steel |
| Finish | Galvanised |
| Type | Single Piece |
Features
- Conforms to Eurocode 6 and service class 2
- Straight top flange
- No welds
- Hangers 150mm and above are manufactured 10mm less to allow for notching and regularised timber
Downloads
Description
Description
The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
