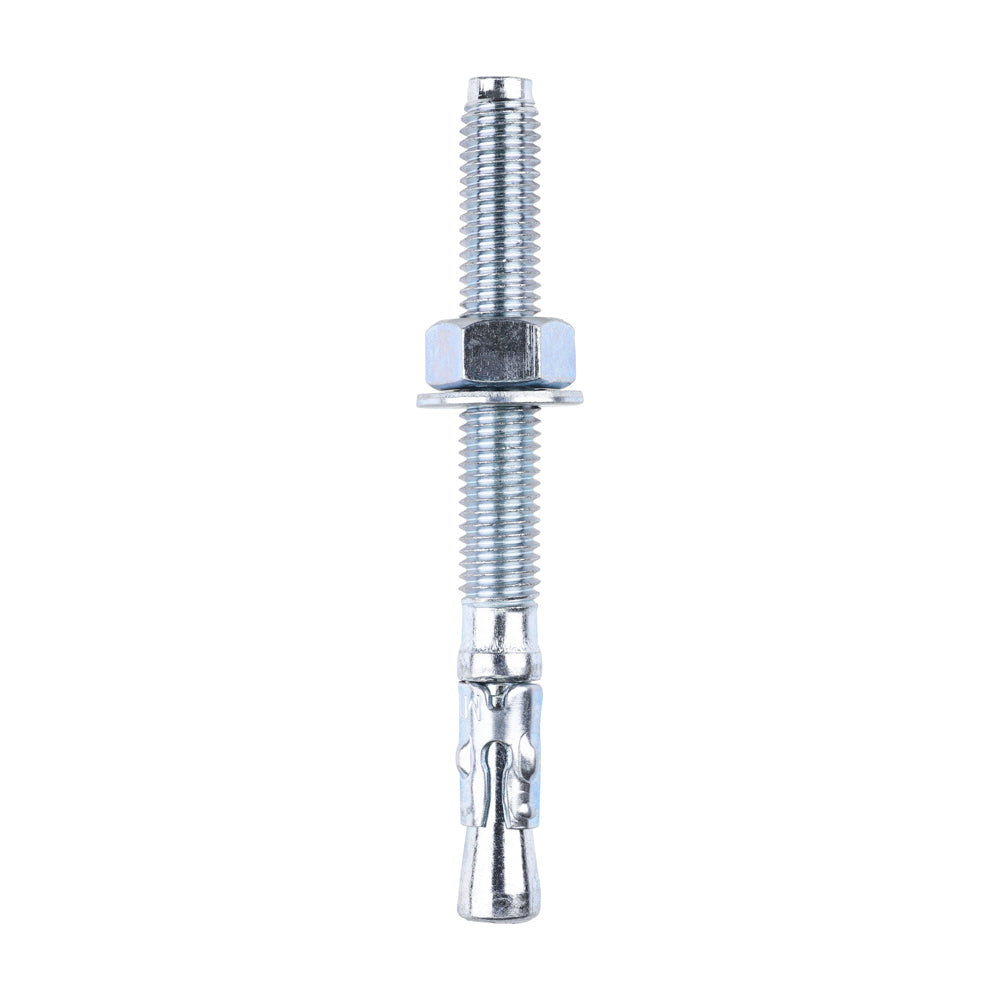

Throughbolts - Zinc - M12 x 120 - Box of 25
SKU: 12120TB
Size: M12 x 120
Pack Quantity: 25 Pieces
Pack Type: Box
Barcode: 5.05533E+12
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Throughbolts - Zinc - M12 x 120 - Box of 25 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
Throughbolts - Zinc - M12 x 120 - Box of 25
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | M12 |
| Length (mm) | 120 |
| Nut Socket Size (mm) | 19 |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Dia. (mm) | 12 |
| Fixture Hole Diameter (mm) | 14 |
| Edge Distance (mm) | 75 |
| Max Fixture Thickness (mm) | 45 |
| Min Drill Hole Depth (mm) | 60 |
Features
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Downloads
Description
Description
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
