TIMCO | SKU:
10100TBP

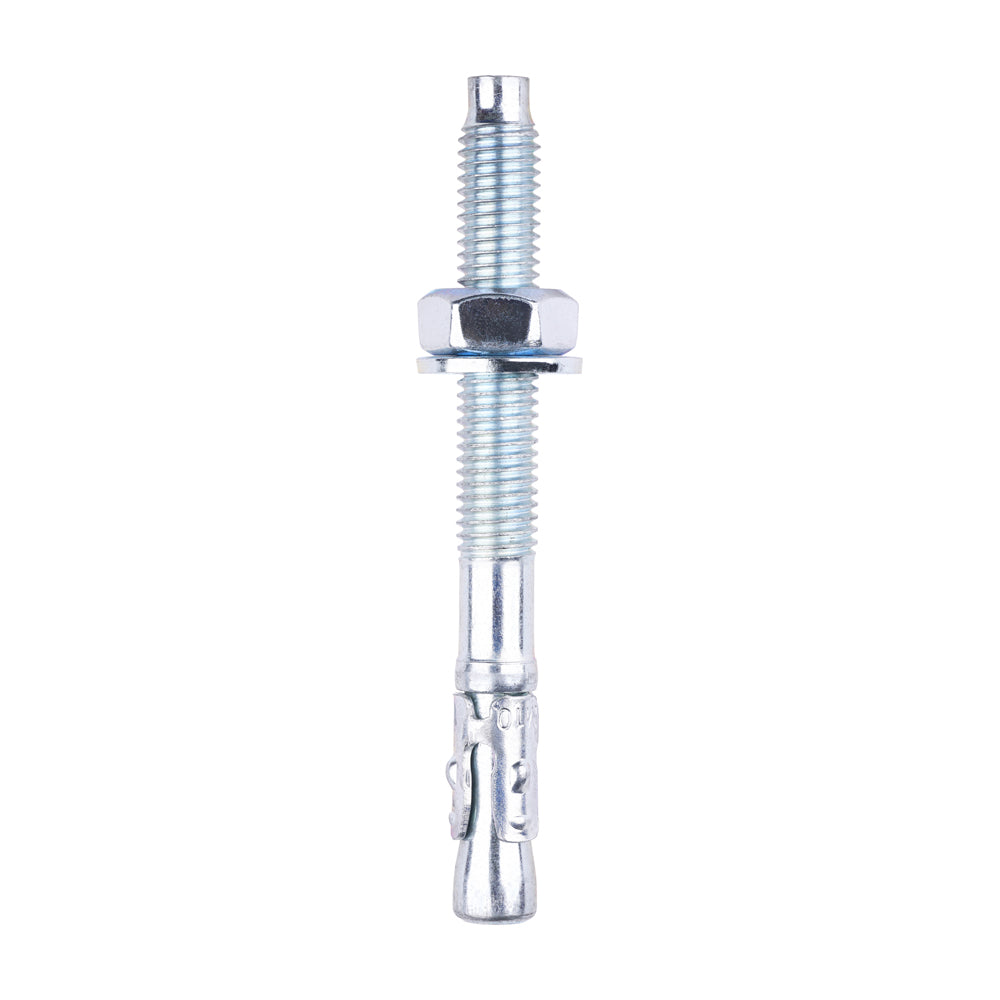

Throughbolts - Zinc - M10 x 100 - TIMpac of 2
£140
£260
Unit price
/
Unavailable
SKU: 10100TBP
Size: M10 x 100
Pack Quantity: 2 Pieces
Pack Type: TIMpac
Barcode: 5.05533E+12
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .
Throughbolts - Zinc - M10 x 100 - TIMpac of 2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
Throughbolts - Zinc - M10 x 100 - TIMpac of 2
£140
£260
Unit price
/
Unavailable
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | M10 |
| Length (mm) | 100 |
| Nut Socket Size (mm) | 17 |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Dia. (mm) | 10 |
| Fixture Hole Diameter (mm) | 12 |
| Edge Distance (mm) | 70 |
| Max Fixture Thickness (mm) | 35 |
| Min Drill Hole Depth (mm) | 50 |
Features
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Downloads
Description
Description
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
