TIMCO | SKU:
1230PSHP

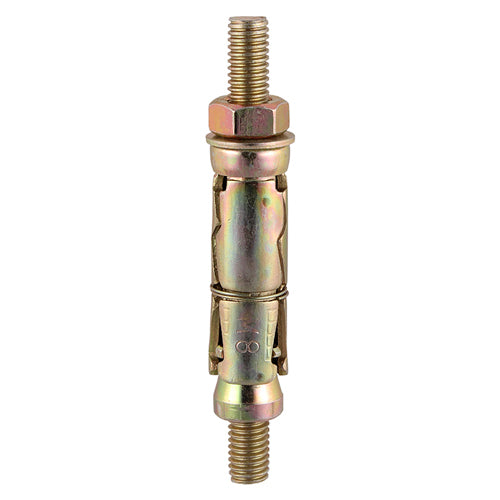

Shield Anchor Projecting Bolts - Yellow - M12:30P (M12 x 120) - TIMpac of 2
£210
£388
Unit price
/
Unavailable
SKU: 1230PSHP
Size: M12:30P (M12 x 120)
Pack Quantity: 2 Pieces
Pack Type: TIMpac
Barcode: 5.05533E+12
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Stud grade 5.8
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .
Shield Anchor Projecting Bolts - Yellow - M12:30P (M12 x 120) - TIMpac of 2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The projecting stud allows the fixture to be positioned into place and then fastened secure.
Shield Anchor Projecting Bolts - Yellow - M12:30P (M12 x 120) - TIM...
£210
£388
Unit price
/
Unavailable
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | M12 |
| Shield Length (mm) | 75 |
| Material | Carbon Steel |
| Finish | Zinc & Yellow |
| Type | Projecting |
| Drill Hole Dia. (mm) | 20 |
| Fixture Hole Diameter (mm) | 14 |
| Min Drill Hole Depth (mm) | 85 |
Features
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Stud grade 5.8
Downloads
Description
Description
The projecting stud allows the fixture to be positioned into place and then fastened secure.
