TIMCO | SKU:
1030PSHB

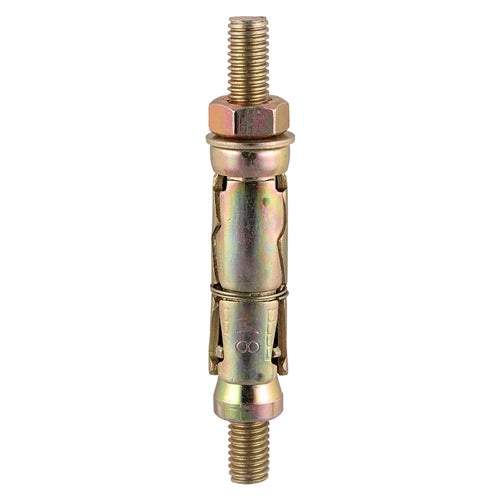

Shield Anchor Projecting Bolts - Yellow - M10:30P (M10 x 100) - TIMbag of 15
£835
£1546
Unit price
/
Unavailable
SKU: 1030PSHB
Size: M10:30P (M10 x 100)
Pack Quantity: 15 Pieces
Pack Type: TIMbag
Barcode: 5.05533E+12
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Stud grade 5.8
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .
Shield Anchor Projecting Bolts - Yellow - M10:30P (M10 x 100) - TIMbag of 15 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The projecting stud allows the fixture to be positioned into place and then fastened secure.
Shield Anchor Projecting Bolts - Yellow - M10:30P (M10 x 100) - TIM...
£835
£1546
Unit price
/
Unavailable
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | M10 |
| Shield Length (mm) | 60 |
| Material | Carbon Steel |
| Finish | Zinc & Yellow |
| Type | Projecting |
| Drill Hole Dia. (mm) | 16 |
| Fixture Hole Diameter (mm) | 12 |
| Min Drill Hole Depth (mm) | 70 |
Features
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Stud grade 5.8
Downloads
Description
Description
The projecting stud allows the fixture to be positioned into place and then fastened secure.
