TIMCO | SKU:
0625LSHP

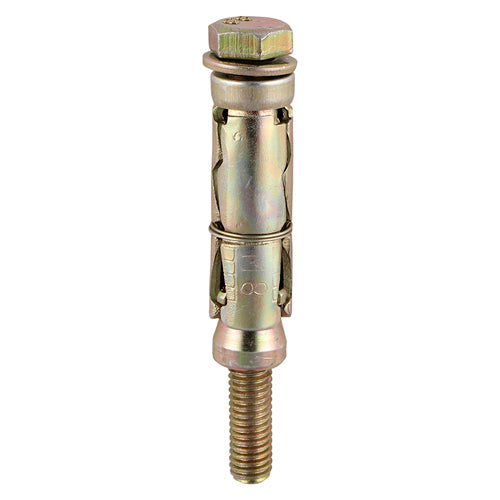

Shield Anchor Loose Bolts - Yellow - M6:25L (M6 x 65) - TIMpac of 4
£140
£260
Unit price
/
Unavailable
SKU: 0625LSHP
Size: M6:25L (M6 x 65)
Pack Quantity: 4 Pieces
Pack Type: TIMpac
Barcode: 5.05533E+12
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Bolt grade 8.8
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .
Shield Anchor Loose Bolts - Yellow - M6:25L (M6 x 65) - TIMpac of 4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Ideal for fixing through the fixture once the shield has been installed into substrate.
Shield Anchor Loose Bolts - Yellow - M6:25L (M6 x 65) - TIMpac of 4
£140
£260
Unit price
/
Unavailable
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | M6 |
| Shield Length (mm) | 45 |
| Material | Carbon Steel |
| Finish | Zinc & Yellow |
| Type | Loose |
| Drill Hole Dia. (mm) | 12 |
| Fixture Hole Diameter (mm) | 8 |
| Min Drill Hole Depth (mm) | 55 |
Features
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Bolt grade 8.8
Downloads
Description
Description
Ideal for fixing through the fixture once the shield has been installed into substrate.
