Forged Hooks with Shield Anchors - Yellow - M8 - TIMbag of 14
SKU: 08HOOKB
Size: M8
Pack Quantity: 14 Pieces
Pack Type: TIMbag
Barcode: 5.05533E+12
- Zinc and yellow passivated for improved corrosion resistance
- Nut and washer included
- Forged hook grade 4.8
Forged Hooks with Shield Anchors - Yellow - M8 - TIMbag of 14 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

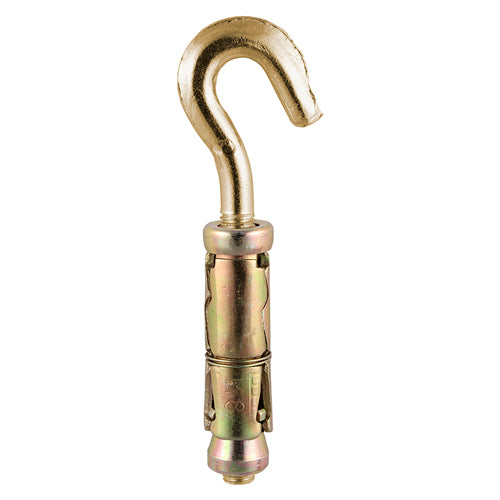

A useful threaded hook bolt for attaching ropes or cables, complete with three segment shield anchor. Manufactured using a forging process for extra strength preventing the hook from opening out when the load is applied.
Forged Hooks with Shield Anchors - Yellow - M8 - TIMbag of 14
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | M8 |
| Shield Length (mm) | 50 |
| Material | Carbon Steel |
| Finish | Zinc & Yellow |
| Type | Hook |
| Drill Hole Dia. (mm) | 14 |
| Min Drill Hole Depth (mm) | 60 |
| Min Embedment Depth (mm) | 50 |
| Min Structure Thickness (mm) | 100 |
Features
- Zinc and yellow passivated for improved corrosion resistance
- Nut and washer included
- Forged hook grade 4.8
Downloads
Description
Description
A useful threaded hook bolt for attaching ropes or cables, complete with three segment shield anchor. Manufactured using a forging process for extra strength preventing the hook from opening out when the load is applied.
