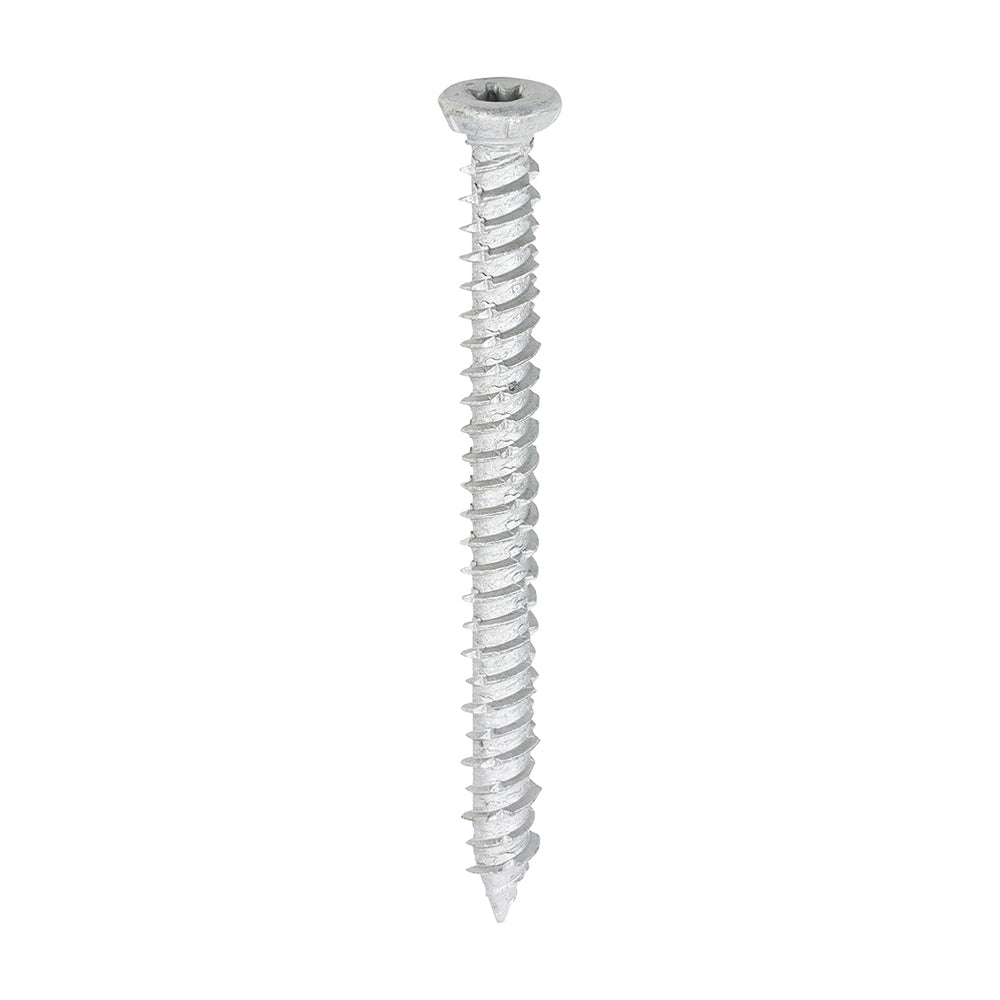

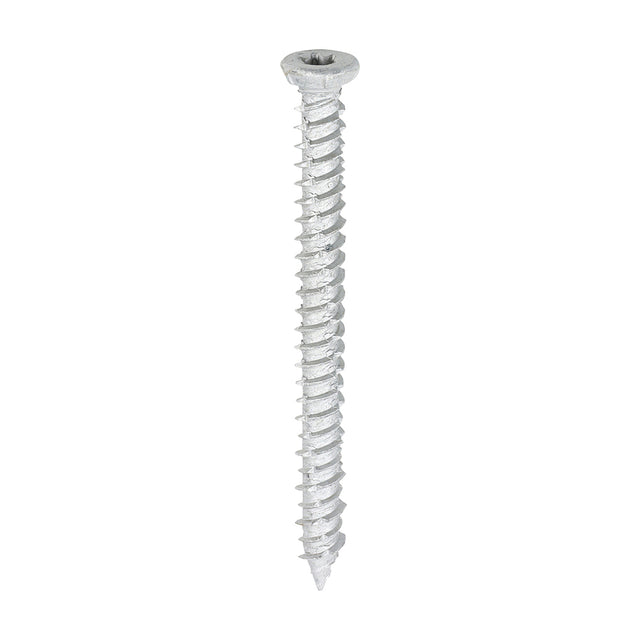

Concrete Screw - TX - Flat Countersunk - Exterior - Silver - 7.5 x 80 - Box of 100
SKU: 80TCONR
Size: 7.5 x 80
Pack Quantity: 100 Pieces
Pack Type: Box
Barcode: 5.05611E+12
- Designed to replace traditional masonry fixings
- TX30 TX Drive recess to reduce driver wear & prevent camming out
- Serrated V-threads to achieve optimum insertion into all masonry types
- Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray.
- High Low threads for ease of insertion
- Ideal for fitting windows and door frames
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Concrete Screw - TX - Flat Countersunk - Exterior - Silver - 7.5 x 80 - Box of 100 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
Concrete Screw - TX - Flat Countersunk - Exterior - Silver - 7.5 x ...
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | 7.5 |
| Length (mm) | 80 |
| Recess Type | TX Drive |
| Head Type | Flat Countersunk with Ribs |
| Finish | Exterior (Silver Organic) |
| Drill Hole Dia. (mm) | 6 |
| Fixture Hole Diameter (mm) | 8 |
| Max Fixture Thickness (mm) | 30 |
| Min Embedment Depth (mm) | 50 |
Features
- Designed to replace traditional masonry fixings
- TX30 TX Drive recess to reduce driver wear & prevent camming out
- Serrated V-threads to achieve optimum insertion into all masonry types
- Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray.
- High Low threads for ease of insertion
- Ideal for fitting windows and door frames
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Downloads
Description
Description
A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
