TIMCO  |  SKU: 00150TCONZ  |  Barcode: 5.05611E+12

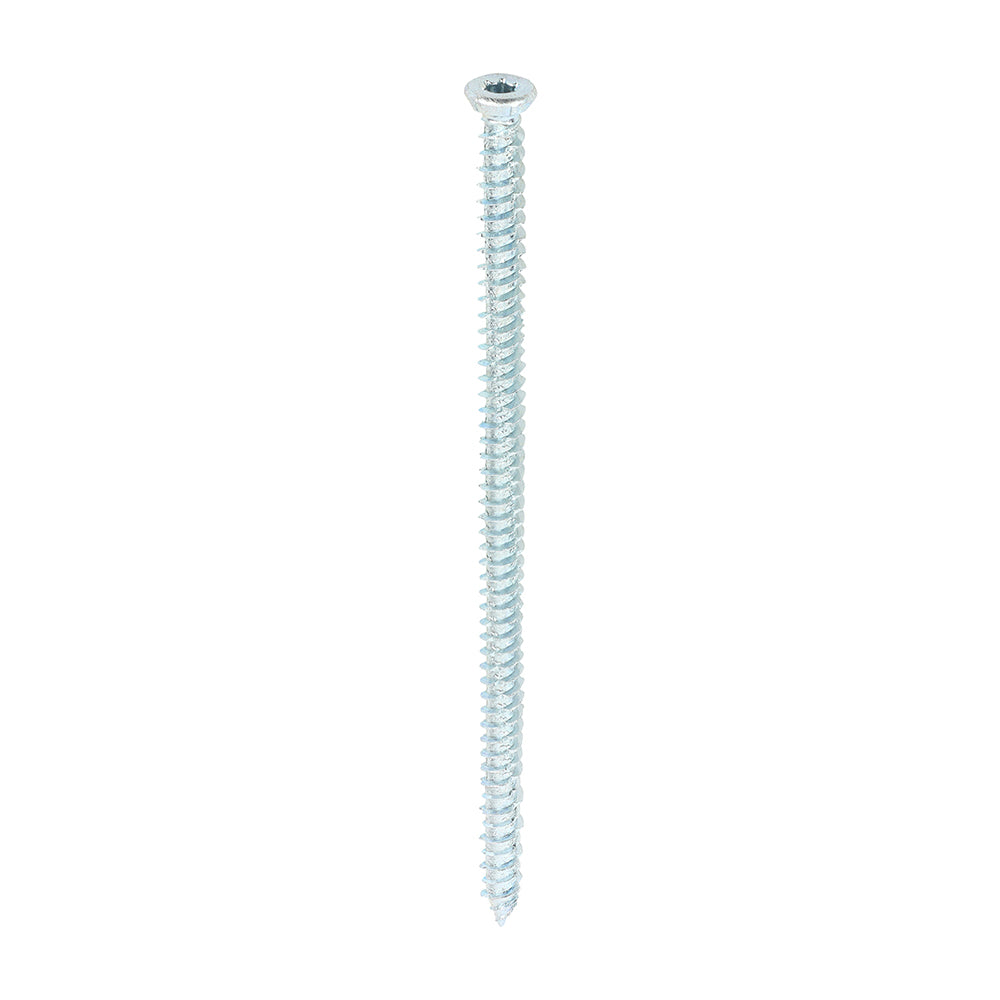

Concrete Screws - TX - Flat Countersunk - Zinc - 7.5 x 150 - Box of 100

£1249 £2169

SKU: 00150TCONZ

Size: 7.5 x 150

Pack Quantity: 100 Pieces

Pack Type: Box

Barcode: 5.05611E+12

Brochure Icon

Brochure Page
  • Designed to replace traditional masonry fixings
  • TX30 TX Drive recess to reduce driver wear & prevent camming-out
  • Serrated V-threads to achieve optimum insertion into all masonry types
  • Zinc plated for increased corrosion resistance
  • High-Low thread on first 30mm to aid insertion and reduce torque
  • Ideal for fitting windows and door frames
  • Flat countersunk head with five locking ribs
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .

A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.

Technical Specifications

Specification Details
Thread Dia. (mm) 7.5
Length (mm) 150
Recess Type TX Drive
Head Type Flat Countersunk with Ribs
Finish Zinc & Clear Cr3
Drill Hole Dia. (mm) 6
Fixture Hole Diameter (mm) 8
Max Fixture Thickness (mm) 100
Min Embedment Depth (mm) 50

Features

  • Designed to replace traditional masonry fixings
  • TX30 TX Drive recess to reduce driver wear & prevent camming-out
  • Serrated V-threads to achieve optimum insertion into all masonry types
  • Zinc plated for increased corrosion resistance
  • High-Low thread on first 30mm to aid insertion and reduce torque
  • Ideal for fitting windows and door frames
  • Flat countersunk head with five locking ribs

Downloads

Description

A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
