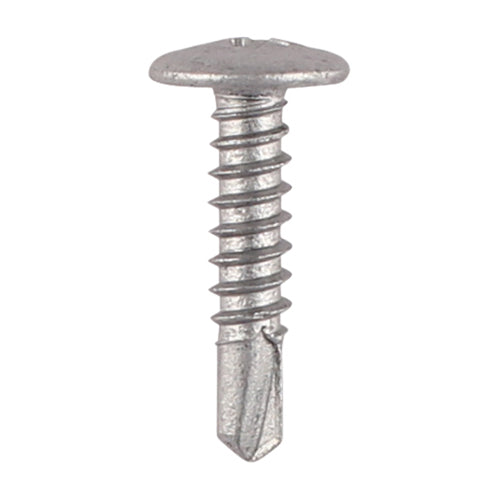

Metal Construction Sheet & Framing Screws - PH - Low Profile Wafer - Exterior - Silver Organic - 4.8 x 22 - Box of 200
SKU: 22LPW
Size: 4.8 x 22
Pack Quantity: 200 Pieces
Pack Type: Box
Barcode: 5.05533E+12
Brochure Page
- Large head diameter for increased clamping.
- Coarse 60° self-tapping thread for extreme grip & excellent pull-out
- Phillips No.2 recess for a positive drive
- Fire Classification - A1
Metal Construction Sheet & Framing Screws - PH - Low Profile Wafer - Exterior - Silver Organic - 4.8 x 22 - Box of 200 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
A light duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours salt spray test.
Metal Construction Sheet & Framing Screws - PH - Low Profile Wa...
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | 4.8 |
| Length (mm) | 22 |
| Head Type | Low Profile Wafer |
| Recess Type | Phillips |
| Point Type | Self-Drilling |
| Driver Bit Size | PH2 |
| Finish | Exterior (Silver Organic) |
| Material | Carbon Steel |
| Max Drilling Thickness (mm) | 4 |
Features
- Large head diameter for increased clamping.
- Coarse 60° self-tapping thread for extreme grip & excellent pull-out
- Phillips No.2 recess for a positive drive
- Fire Classification - A1
Downloads
Description
Description
A light duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours salt spray test.
