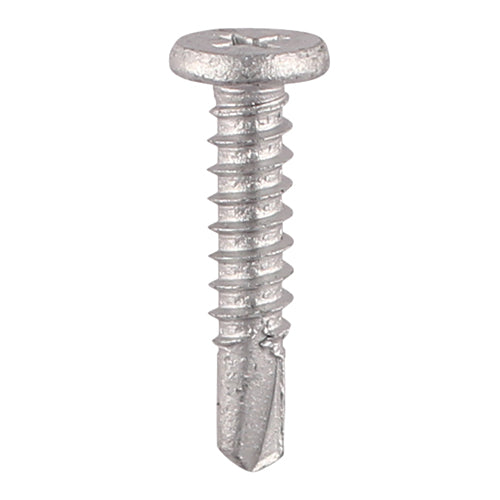

Metal Construction Sheet & Framing Screws - PH - Low Profile Pancake - Exterior - Silver Organic - 5.5 x 19 - Box of 500
SKU: FP19
Size: 5.5 x 19
Pack Quantity: 500 Pieces
Pack Type: Box
Barcode: 5055017587124
Brochure Page
- Metsec Tested
- Large head diameter for increased clamping
- Coarse 60° self-tapping thread for extreme grip & excellent pull-out
- Phillips No.2 recess for a positive drive
- Fire Classification - A1
Metal Construction Sheet & Framing Screws - PH - Low Profile Pancake - Exterior - Silver Organic - 5.5 x 19 - Box of 500 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
A medium duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours salt spray test.
Metal Construction Sheet & Framing Screws - PH - Low Profile Pa...
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | 5.5 |
| Length (mm) | 19 |
| Head Type | Low Profile Pancake |
| Recess Type | Phillips |
| Point Type | Self-Drilling |
| Driver Bit Size | PH2 |
| Finish | Exterior (Silver Organic) |
| Material | Carbon Steel |
| Max Drilling Thickness (mm) | 5 |
Features
- Metsec Tested
- Large head diameter for increased clamping
- Coarse 60° self-tapping thread for extreme grip & excellent pull-out
- Phillips No.2 recess for a positive drive
- Fire Classification - A1
Downloads
Description
Description
A medium duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours salt spray test.
