TIMCO  |  SKU: MF1060C  |  Barcode: 5055893338407

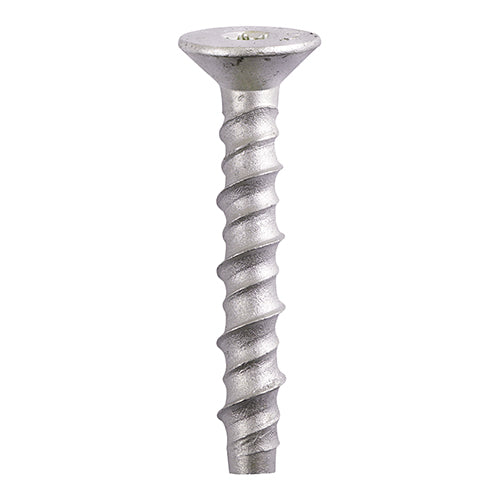

Multi-Fix Masonry Bolts - Countersunk - Exterior - Silver - 10.0 x 60/M12 - Box of 50

£3395 £5255

SKU: MF1060C

Size: 10.0 x 60/M12

Pack Quantity: 50 Pieces

Pack Type: Box

Barcode: 5055893338407

Brochure Icon

Brochure Page
  • TIMCO micro plating technology gives a higher resistance to corrosion and enhances speed of installation
  • High-Low parallel threads for ease of insertion and high pull-out values
  • Removable & adjustable non-expansion through fixing
  • Unique concave thread configuration
  • Countersunk head gives a discreet finish into pre-countersunk holes
  • All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .

This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors. Countersunk head for a flush finish.

Technical Specifications

Specification Details
Thread Dia. (mm) 10
Length (mm) 60
Recess Type TX Drive
Head Type Countersunk
Finish Exterior (Silver Organic)
Drill Hole Dia. (mm) 10
Fixture Hole Diameter (mm) 12
Max Fixture Thickness (mm) 10

Features

  • TIMCO micro plating technology gives a higher resistance to corrosion and enhances speed of installation
  • High-Low parallel threads for ease of insertion and high pull-out values
  • Removable & adjustable non-expansion through fixing
  • Unique concave thread configuration
  • Countersunk head gives a discreet finish into pre-countersunk holes
  • All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.

Downloads

Description

This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors. Countersunk head for a flush finish.
