TIMCO | SKU:
640MFPAN

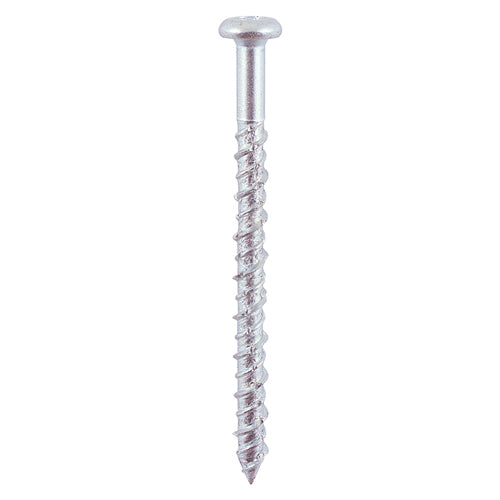

Masonry Screws - TX - Pan - Zinc - 6.0 x 40 - Box of 100
£452
£613
Unit price
/
Unavailable
SKU: 640MFPAN
Size: 6.0 x 40
Pack Quantity: 100 Pieces
Pack Type: Box
Barcode: 5055893301845
- TX25 TX Drive recess reduces wear & camming-out
- Serrated V-threads to achieve optimum insertion
- High-Low threads for ease of insertion
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can only be sold in quantity increments of .
Masonry Screws - TX - Pan - Zinc - 6.0 x 40 - Box of 100 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
A rapid and effective light duty fixing ideal for attaching ironmongery to concrete, stone and brick without the need for nylon plugs. Pan head to improve clamping.
Masonry Screws - TX - Pan - Zinc - 6.0 x 40 - Box of 100
£452
£613
Unit price
/
Unavailable
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | 6 |
| Length (mm) | 40 |
| Recess Type | TX Drive |
| Head Type | Pan |
| Finish | Zinc |
| Drill Hole Dia. (mm) | 5 |
| Fixture Hole Diameter (mm) | 6.5 |
| Max Fixture Thickness (mm) | 15 |
| Min Embedment Depth (mm) | 25 |
Features
- TX25 TX Drive recess reduces wear & camming-out
- Serrated V-threads to achieve optimum insertion
- High-Low threads for ease of insertion
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire
Downloads
Description
Description
A rapid and effective light duty fixing ideal for attaching ironmongery to concrete, stone and brick without the need for nylon plugs. Pan head to improve clamping.
