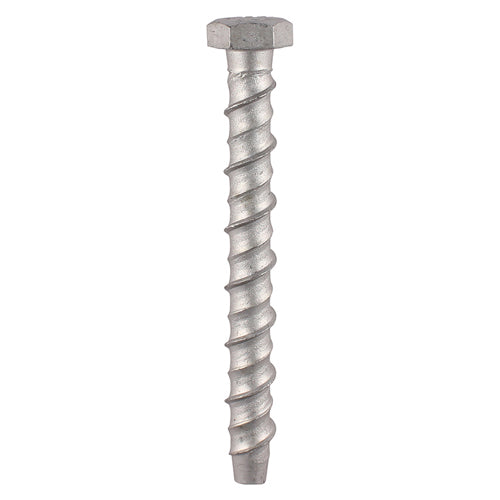

Masonry Bolts - Hex - Exterior - Silver - 10.0 x 60 - TIMbag of 18
SKU: MF1060B
Size: 10.0 x 60
Pack Quantity: 18 Pieces
Pack Type: TIMbag
Barcode: 5055331859426
- Designed to replace traditional expansion anchors
- TIMCO micro plating (Nano) technology gives a higher resistance to corrosion
- High-Low parallel threads for ease of insertion and high pull-out values
- Removable & adjustable non-expansion through fixing
- Unique concave thread configuration
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Masonry Bolts - Hex - Exterior - Silver - 10.0 x 60 - TIMbag of 18 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.
Masonry Bolts - Hex - Exterior - Silver - 10.0 x 60 - TIMbag of 18
Technical Specifications
| Specification | Details |
|---|---|
| Thread Dia. (mm) | 10 |
| Length (mm) | 60 |
| Socket Size (mm) | 17 |
| Head Type | Hex |
| Finish | Exterior (Silver Organic) |
| Drill Hole Dia. (mm) | 10 |
| Fixture Hole Diameter (mm) | 12 |
| Max Fixture Thickness (mm) | 10 |
| Min Drill Hole Depth (mm) | 70 |
Features
- Designed to replace traditional expansion anchors
- TIMCO micro plating (Nano) technology gives a higher resistance to corrosion
- High-Low parallel threads for ease of insertion and high pull-out values
- Removable & adjustable non-expansion through fixing
- Unique concave thread configuration
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Downloads
Description
Description
This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.
