TIMCO  |  SKU: 00050TCONB  |  Barcode: 5056110845296

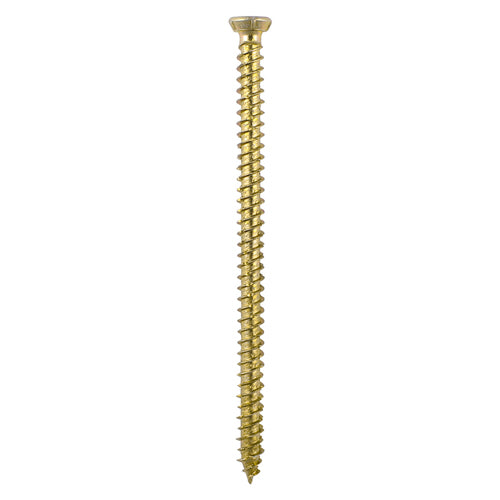

Concrete Screws - TX - Flat Countersunk - Yellow - 7.5 x 50 - TIMbag of 100

£715 £1033

SKU: 00050TCONB

Size: 7.5 x 50

Pack Quantity: 100 Pieces

Pack Type: TIMbag

Barcode: 5056110845296

Brochure Icon

Brochure Page
  • Designed to replace traditional masonry fixings
  • TX30 TX Drive recess to reduce driver wear & prevent camming-out
  • Serrated V-threads to achieve optimum insertion into all masonry types
  • Zinc plated and yellow passivated for increased corrosion resistance
  • High-Low thread on first 30mm to aid insertion and reduce torque
  • Ideal for fitting windows and door frames
  • Flat countersunk head with five locking ribs
Minimum quantity allowed is .
Maximum quantity allowed is 0.
The product can only be sold in quantity increments of 0.

A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.

Technical Specifications

Specification Details
Thread Dia. (mm) 7.5
Length (mm) 50
Recess Type TX Drive
Head Type Flat Countersunk with Ribs
Finish Zinc & Yellow
Drill Hole Dia. (mm) 6
Fixture Hole Diameter (mm) 8
Max Fixture Thickness (mm) 15
Min Embedment Depth (mm) 35

Features

  • Designed to replace traditional masonry fixings
  • TX30 TX Drive recess to reduce driver wear & prevent camming-out
  • Serrated V-threads to achieve optimum insertion into all masonry types
  • Zinc plated and yellow passivated for increased corrosion resistance
  • High-Low thread on first 30mm to aid insertion and reduce torque
  • Ideal for fitting windows and door frames
  • Flat countersunk head with five locking ribs

Downloads

Description

A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
